NASA Unified S-Band (USB) Ground Station

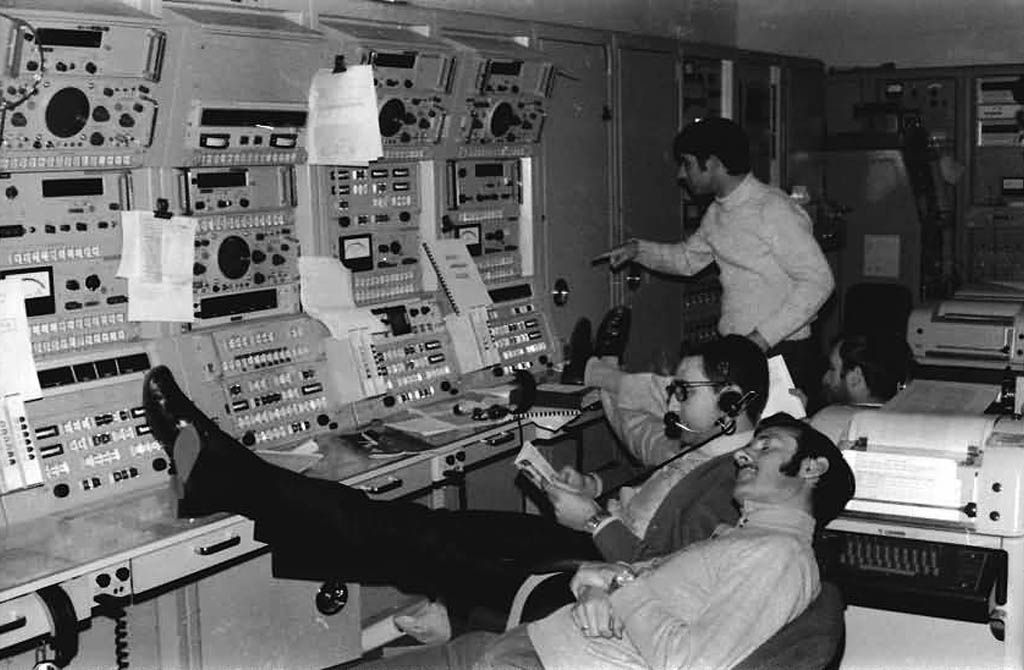

USB installation in Madrid (1960s)

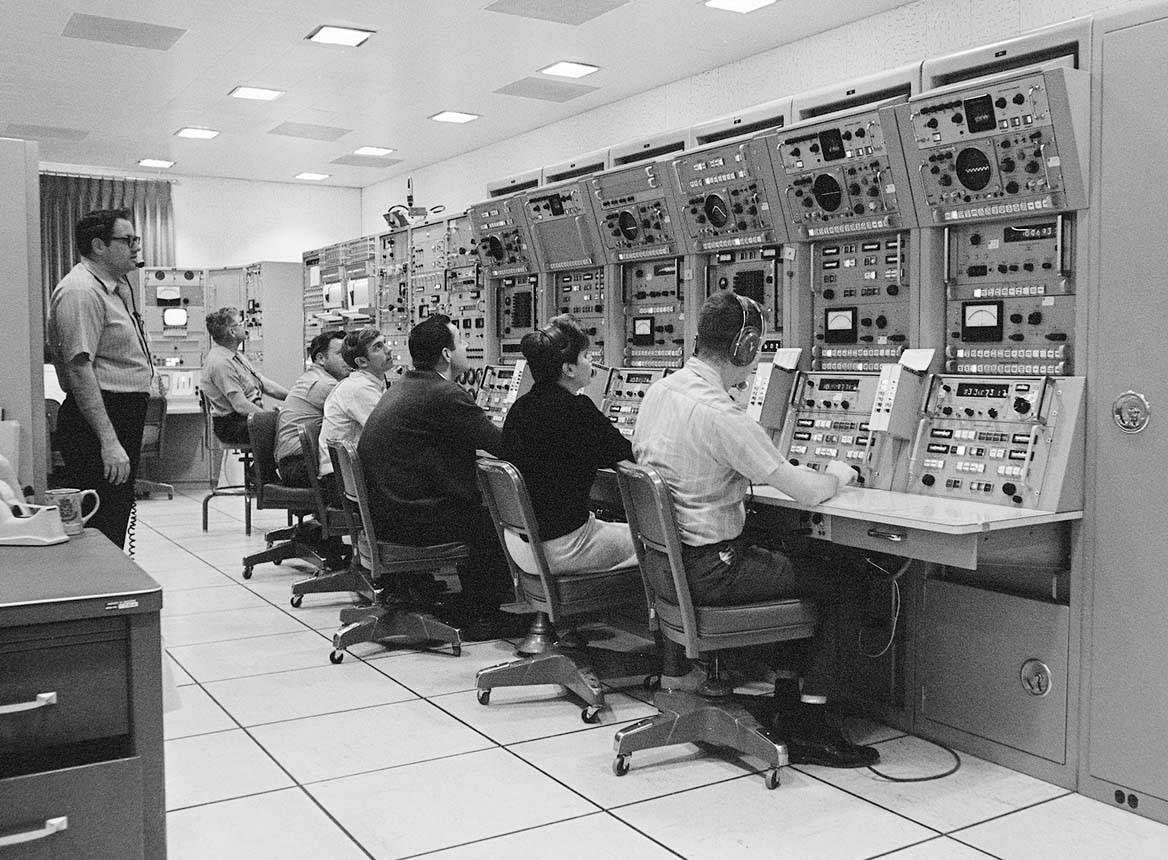

Installation in Madrid for Apollo 10 mission (May 18, 1969) Installation in Madrid A rest between orbits Installation in Madrid

USB at Rutherford (1980 onwards)

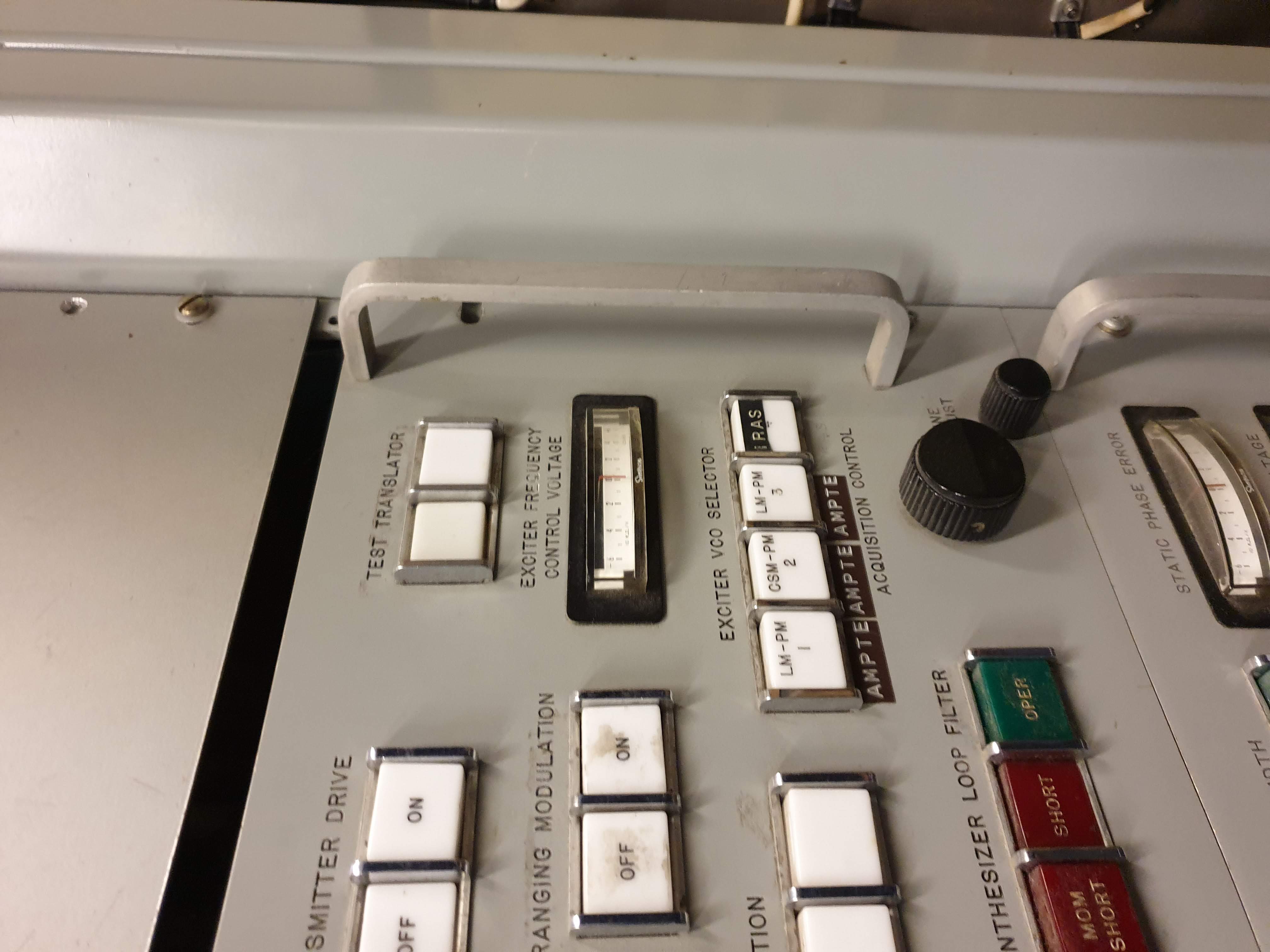

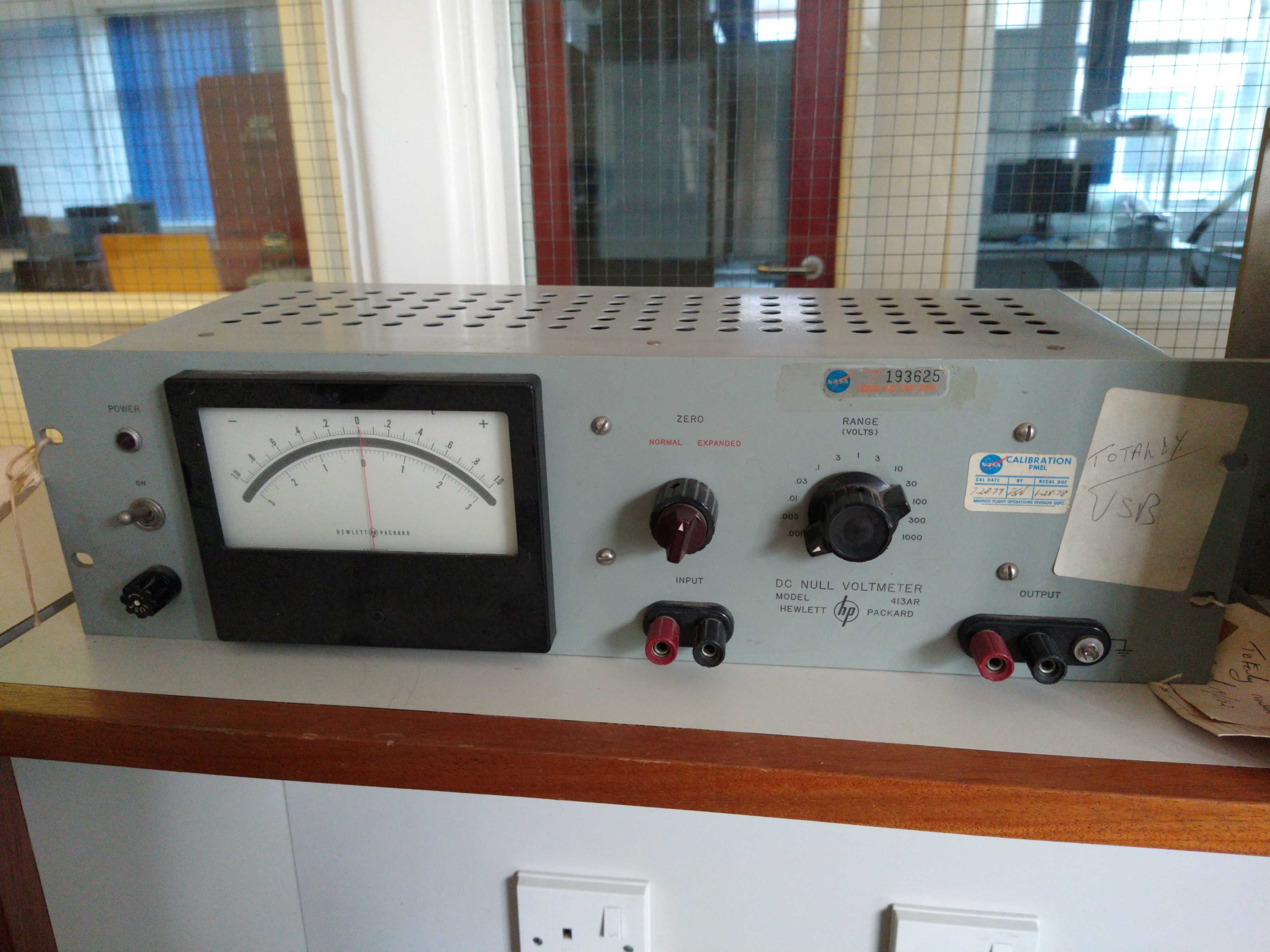

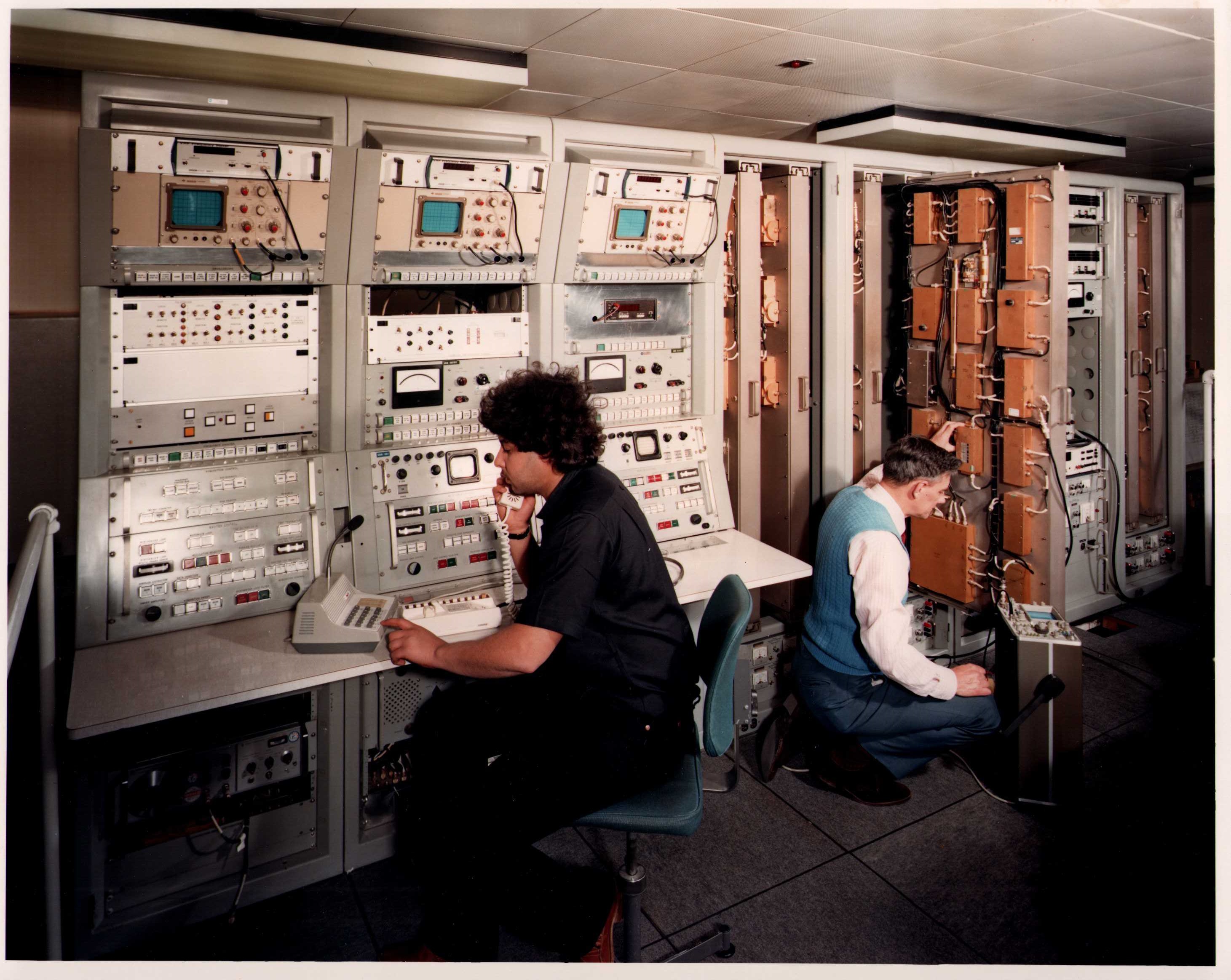

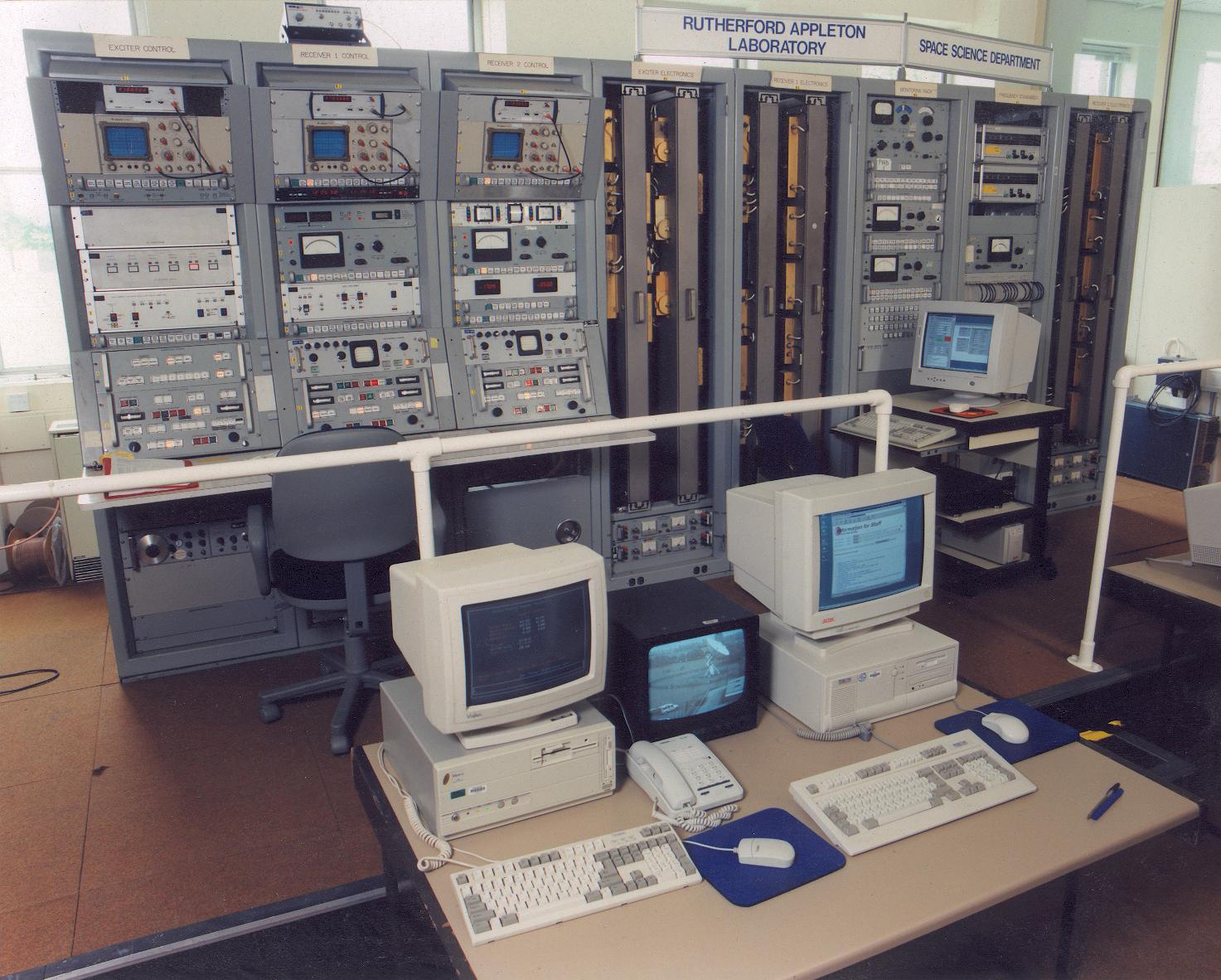

In R1 (c.1980) On display in R68 (1999) USB detail; note the AMPTE and IRAS mission buttons USB module in storage; note the NASA inventory and calibration tags John Wright (ex-RAL) and Jay Holliday (ex-JPL) inspect the USB (June 2019)

Memos and telexes have recently come to light which indicate that the ground station was shipped from Madrid to Appleton Laboratory in May 1978. It was moved to RAL on 25 July 1979.

Manuals

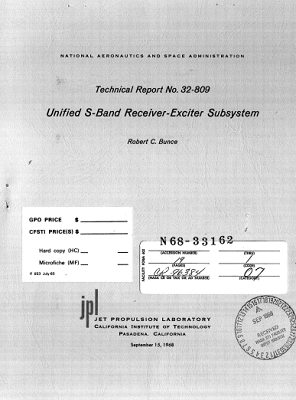

Unified S-Band Receiver-Exciter Subsystem (September 1968)
